AFL TELECOMMUNICATIONS S017030

Overview

Product Description

CT50 Fiber Cleaver The CT50 features automated blade rotation, unprecedented durability, and simplistic maintenance unseen with any other cleaver. Paired with a Bluetooth enabled Fujikura splicer, cleaver blade positions can be automatically advanced when needed based on cleave count or cleave quality. If automated rotation is not desired, the blade positioncan be advanced at the touch of a button, no tools required. The easy to read blade position indicator clearly displays the selected position. The Bluetooth® feature, along with simplified mechanical operation, increases overall productivity and reliability. The fiber clamp opens beyond 90 degrees and readies the blade for cleaving in the same motion. This allows easy viewing of the distance scale used to gauge cleave length. The 16-position blade yields 60,000 single-fiber cleaves, or 5,000 12-fiber ribbon cleaves. The built-in scrap collector conveniently stores fiber shards until they can be safely discarded.The CT50 is an industry first cleaver ruggedized to withstand severe shock, including drops up to 30 inches. If needed, the CT50 is field serviceable with all precision components easily replaced in the field Specifications PARAMETER VALUEA pplicable Fiber Conventional silica optical fiber Fiber Count Single and up to 12 fiber ribbon Coating Diameter 250 µm to 900 µm Cladding Diameter 125 µm Cleave Length 5-20 mm with AD-50 adapter plate and 10 mm when using fiber holders Cleave Angle Capability Typically <0.5 ° Blade Lifetime 60,000 fiber cleaves (5,000 12-fiber cleaves) Dimensions (W x D x H) 120 mm x 95 mm x 58 mm Weight 300 g (0.66 lbs) Ordering Information DESCRIPTION APPLICATION FIBER HANDLING SYSTEM CLEAVE LENGTH AFL NO. CT50 Single or Ribbon Fiber AD-50 adapter plate for single 5-20 mm with AD-50 S017030 fibers or fiber holders for ribbons and 10 mm when using fiber holders Accessories DESCRIPTION AFL NO. CB-08 Replacement Blade S017076 FDB-05 Scrap Collector Box S017121 AD-50 Adapter Plate S017010 ARM-CT50-01 Replacement Arm Set S017122 BRW-CT08-01 Blade Rotary Wheel S017110 SC-CT50-01 Side Cover S017108 CC-37 Transit Case S017077 SPA-CT-08-10 Spacer S017011 Shown in CC-37 Carrying Case Features Motorized blade rotation Bluetooth communication Shock resistant Simple one-step operation 60,000 cleave blade life Field serviceable

Product Videos

Custom Field

Product Reviews

Write a Review

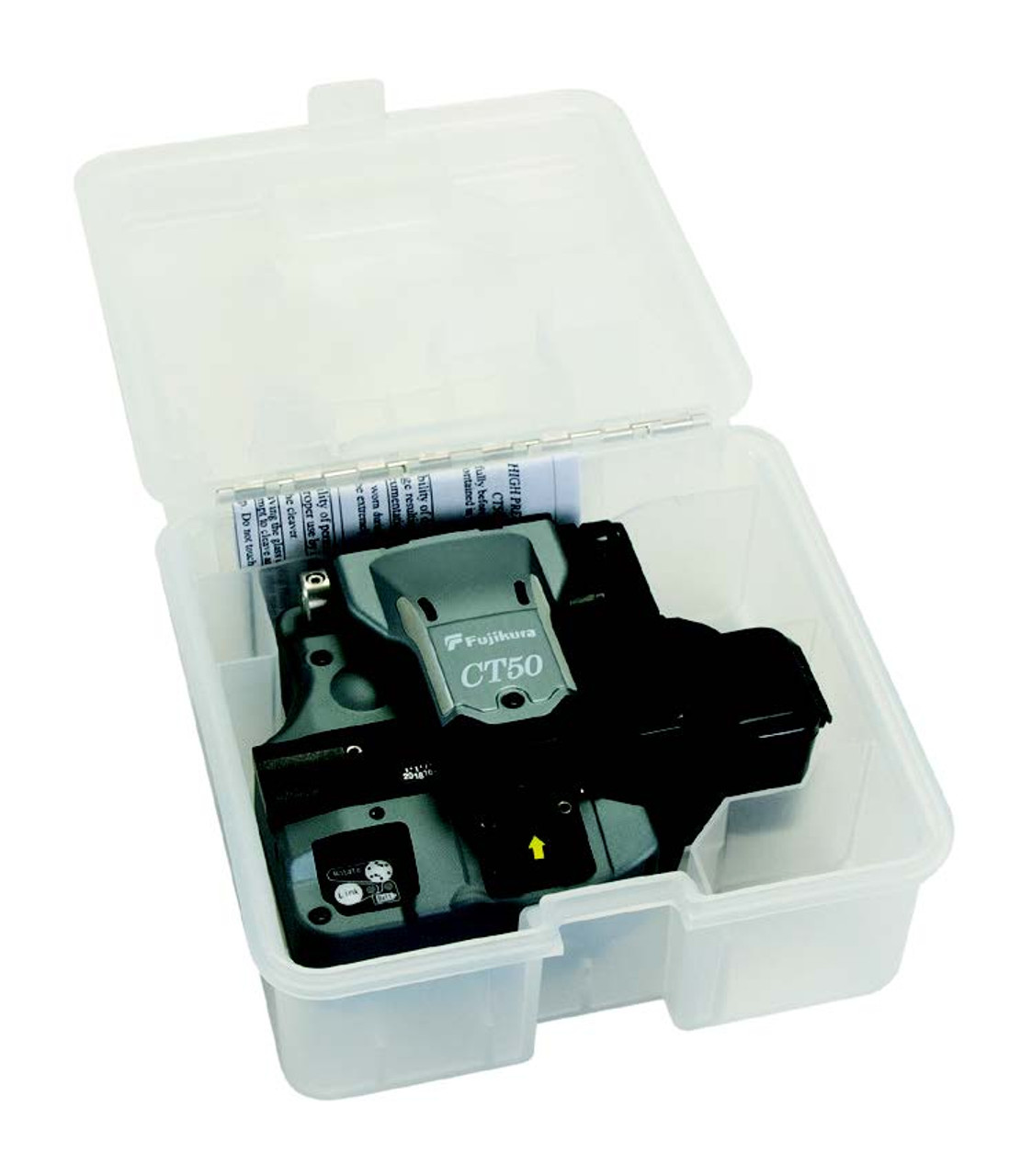

AFL CT50 SINGLE & RIBBON FIBER CLEAVER S017030 NEW CT-50
