CORNING INC SNI-2125-2H-1

Overview

Product Description

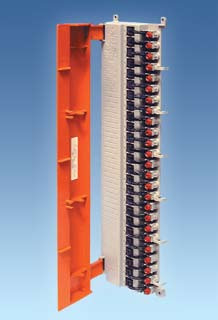

AFL TELECOMMUNICATIONS SNI-2125-2H-1 25 PAIR NETWORK INTERFACE DEVICE ***minimum order is 10*** The SNI-2125 is a compact Network Interface Device (NID) designed for 25-pair indoor applications. Constructed of a thermoplastic alloy and the highest quality components, the SNI-2125 is designed to provide years of uninterrupted service. The SNI-2125 is provided with a male 50-pin connector for the network connection (66-type punchdown clips are optional) and press-fit wiring bridges featuring multi-washer screws on the subscriber side. The SNI-2125 can be stacked vertically for greater than 25-pair applications. The unit is available without the subscriber wiring bridges for use as a 50-pin to RJ-11 adapter or patch block. Specifications PARAMETER VALUE Construction Precision injection-molded from rugged engineering thermoplastic Plugs and Jacks 50 micro inches of hard gold over 100 micro inches of nickel-plated phosphor bronze Terminal Screws Plastic head, stainless steel 1.4" hex-slotted multi-washer (brass) screws Mounting Wall or backboard via mounting feet Benefits Dimensions (H x W x D) 16.25h x 5.13h x 1.63h . 25-pair network interface . Optional remote half ringer electronics . Rugged thermoplastic alloy housing . 50-pin connector or optional 66-type punchdown on network side . Multi-washer screws on subsciber side . Field replaceable wiring bridges . Stack units vertically SNI-2125 SNI-2125 Basic unit 1 1 = Male 50-Pin Connector on Network Side, Screw Terminals on Subscriber Side 2H = 66 Clips on Network Side (3/8h Cover Fastener), Screw Terminals on Subscriber Side 2S = 66 Clips on Network Side (Security Cover Fastener), Screw Terminals on Subscriber Side 5 = Male 50-Pin Connector on Network Side, No wiring Bridge on Subscriber Side Termination 1 Type of Electronics 1 = Interface Module only 2 = Half Ringer Equivalence EXAMPLE: SNI-2125 . 1 . 1 This model number indicates that the following has been ordered: SNI-2125 Multiline Network Interface Device, Male 50-pin connector on network side, screw terminals on subscriber side, Interface only. SNIR-2125 25-Pair Network Interface Device Standard Configurations MODEL # PART # SNI-2125 Consult customer service c 2002-2008, AFL TELECOMMUNICATIONSTELECOMMUNICATIONS, all rights reserved. Revision 1.1, 12.08.08 Specifications are subject to change without notice. Custom

Product Videos

Custom Field

Product Reviews

Write a Review

AFL SNI-2125-2H-1 25 PAIR NETWORK INTERFACE DEVICE ***minimum order is 10***
