ALLEGRO INDUSTTRIES 9878-150

Overview

Product Description

Allegro 9878-150 150 CFM Wall Air Filter Panel w/ CO Monitor, Single Port Allegro air filtration panels filter impurities and hydrocarbons from an air compressor to convert to breathable air. To meet OSHA requirements, a CO monitor is available for continuous monitoring of carbon monoxide levels. Panel provides up to 150 CFM (254.8 m3 /hr) of air within a 5-125 PSI (.34-8.62 bar) range. Meets NIOSH requirements for point-ofattachment. CONSTRUCTION: 12 gauge black powdered coated steel mounting bracket All brass plumbing with quick-disconnect Hansen couplers Inlet side: 1" NPT male nipple, made of Brass Outlet side: ¾" NPT male nipple, made of Brass CO MONITOR: (Included in 9878-150 model) Power source: 115V AC to 9V DC power adapter for continuous power supply. 9V DC Alkaline battery (primary or as back-up for AC adapter). Alarm Setting: 10 PPM (Canada: 5PPM) External Connections: Optional Strobe Light Alarm. Audible: 90 decibel Piezo Alarm. Visual: External power LED light signal. Sensor: Electrochemical replaceable Display: Liquid crystal Keys: Mode & Set Modes: Normal Operation, Peak, Battery Charge and Calibration mode. Calibration: Self adjusting calibration to 20 PPM CO FILTRATION SYSTEM: First Stage: 5 micron particulate filter element and automatic mechanical drain Second Stage: 0.010 micron coalescing filter element and manual drain Third Stage: 0.003 micron activated carbon filter element and manual drain Regulator: High pressure, adjusting pressure knob, 0-160 psi (0-11.03 bar) pressure gauge and external relief valve Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM L 22" x W 10" x H 19"

Product Videos

Custom Field

Product Reviews

Write a Review

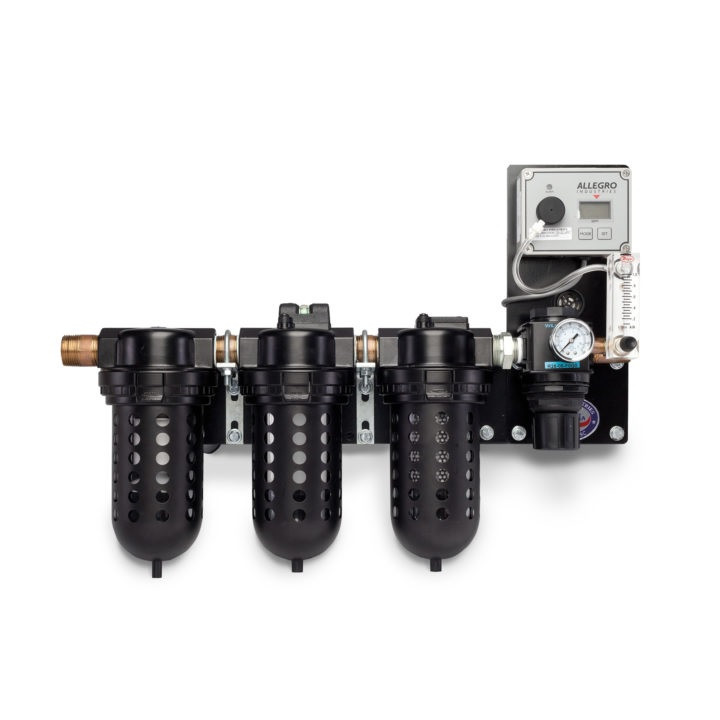

Allegro 9878-150 150 CFM Wall Air Filter Panel w/ CO Monitor, Single Port
