  • Allegro 9878-151 150 CFM Wall Air Filter Panel w/o CO Monitor, Single Port

    • Allegro 9878-151 150 CFM Wall Air Filter Panel w/o CO Monitor, Single Port

    $2,158.99
    Write a Review
    SKU:
    80054615
    UPC:
    9878-151
    Weight:
    27.00 LBS
    Adding to cart… category.add_cart_announcement

    Product Description

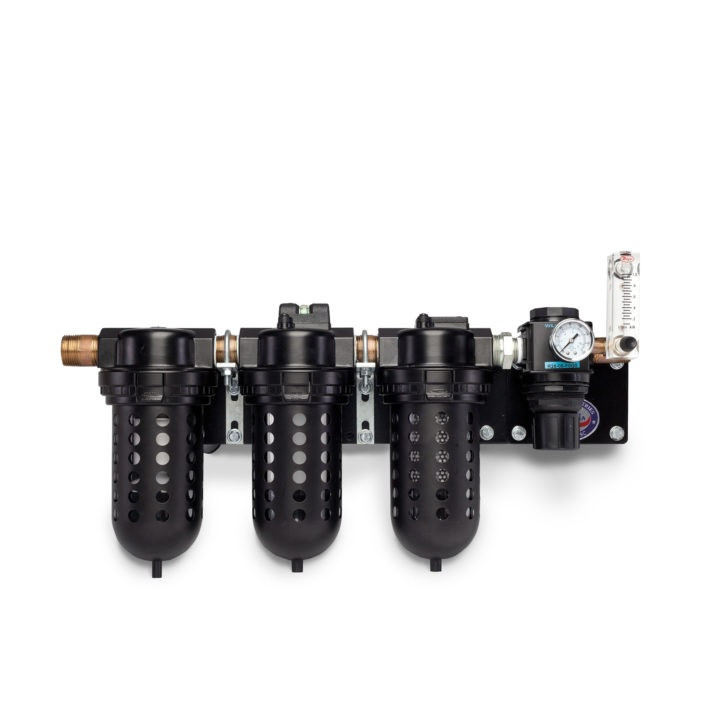

    Allegro 9878-151 150 CFM Wall Air Filter Panel w/o CO Monitor, Single Port Allegro air filtration panels filter impurities and hydrocarbons from an air compressor to convert to breathable air. To meet OSHA requirements, a CO monitor is available for continuous monitoring of carbon monoxide levels. Panel provides up to 150 CFM (254.8 m3 /hr) of air within a 5-125 PSI (.34-8.62 bar) range. Meets NIOSH requirements for point-ofattachment. CONSTRUCTION: • 12 gauge black powdered coated steel mounting bracket • All brass plumbing with quick-disconnect Hansen couplers • Inlet side: 1" NPT male nipple, made of Brass • Outlet side: ¾" NPT male nipple, made of Brass FILTRATION SYSTEM: First Stage: 5 micron particulate filter element and automatic mechanical drain Second Stage: 0.010 micron coalescing filter element and manual drain Third Stage: 0.003 micron activated carbon filter element and manual drain Regulator: High pressure, adjusting pressure knob, 0-160 psi (0-11.03 bar) pressure gauge and external relief valve Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM L 22" x W 10" x H 19"
