GMP GENERAL MACHINE PRODUCTS 70621

Overview

Product Description

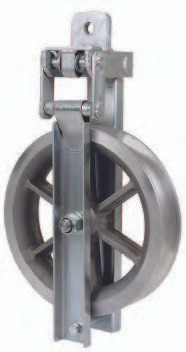

GENERAL MACHINE PRODUCTS 70621 BLOCK STARTER ADSS 15.1" ROOT DIAMETER NEW LARGE DIAMETER ADSS STARTER BLOCKS Used at the feed and exit of an ADSS installation The large diameter profiled groove helps protect the cable. The swivel oval eye, cable gate and cable retaining pin make it easy to use The sheave rides on ball bearings. Available in 2 sizes subhead_spacer Ordering Information P/N Outside Diameter Groove Width Root Diameter Working Load Limit Weight 70621 18.5 in. (470 mm) 2.17 in. (55 mm) 15.16 in. (385 mm) 5291 lbs. (2400 kg) 30.8 lbs. (14 kg) 70614 26.06 in. (662 mm) 2.36 in. (60 mm) 23.62 in. (600 mm) 5291 lbs (2400 kg) 33.1 lbs. (15 kg)
