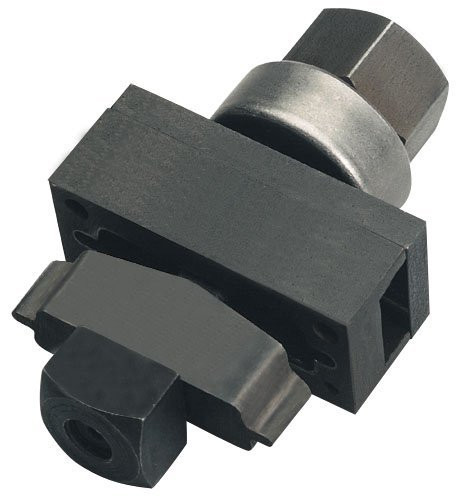

GREENLEE 231 PUNCH UNIT-CONNECTOR 15 PIN (231) 50344374/783310344377 NEW
DESCRIPTION: PUNCH UNIT-CONNECTOR 15 PIN (231)
Cut-out and mounting slots are punched in one operation
Drill only one 7/16" (11.1 mm) pilot hole. (use with Kwik Stepper® step bits.)
Fast, accurate panel punching with no sawing or filing required
Universal size punches for front or back mount of TRW Cinch and ITT Cannon-type or equivalent connectors in 9, 15, 25, 37 or 50-pin configurations
U.S. Patent No. 4,899,447
SPECIFICATIONS:
Capacity :
16 GA (1.500 MM) Mild Steel
10 GA (3.500 MM) Aluminum
No. Of Pins : 15
Operation Type :
Manual with Wrench
Quick Draw® and Quick Draw 90® Hydraulic Drivers, Battery Driver, Ram And Pump Hydraulic Drivers Aluminum
Replacement Part : 34442 Punch, 35197 Die Unit, 34421 Draw Stud, 04638 Square Counter Nut, 34733 Drive Nut
Size : 1.127 IN X 1.309 IN X 0.469 IN (28.600 MM X 33.300 MM X 11.900 MM)
Type : Electronic Connector Panel
WEIGHT : 1.500 LB (0.680 KG)
CAT #: 231
UPC #: 50344374/783310344377
