  • JONARD 30-Y-50-020 Wire 30Awg Yellow Kynar 2" 50 Pcs/Pkg 811490011038

    • JONARD 30-Y-50-020 Wire 30Awg Yellow Kynar 2" 50 Pcs/Pkg 811490011038

    $9.95
    Write a Review
    SKU:
    38312140
    UPC:
    30-Y-50-020
    Weight:
    0.03 LBS
    Adding to cart… category.add_cart_announcement

    Product Description

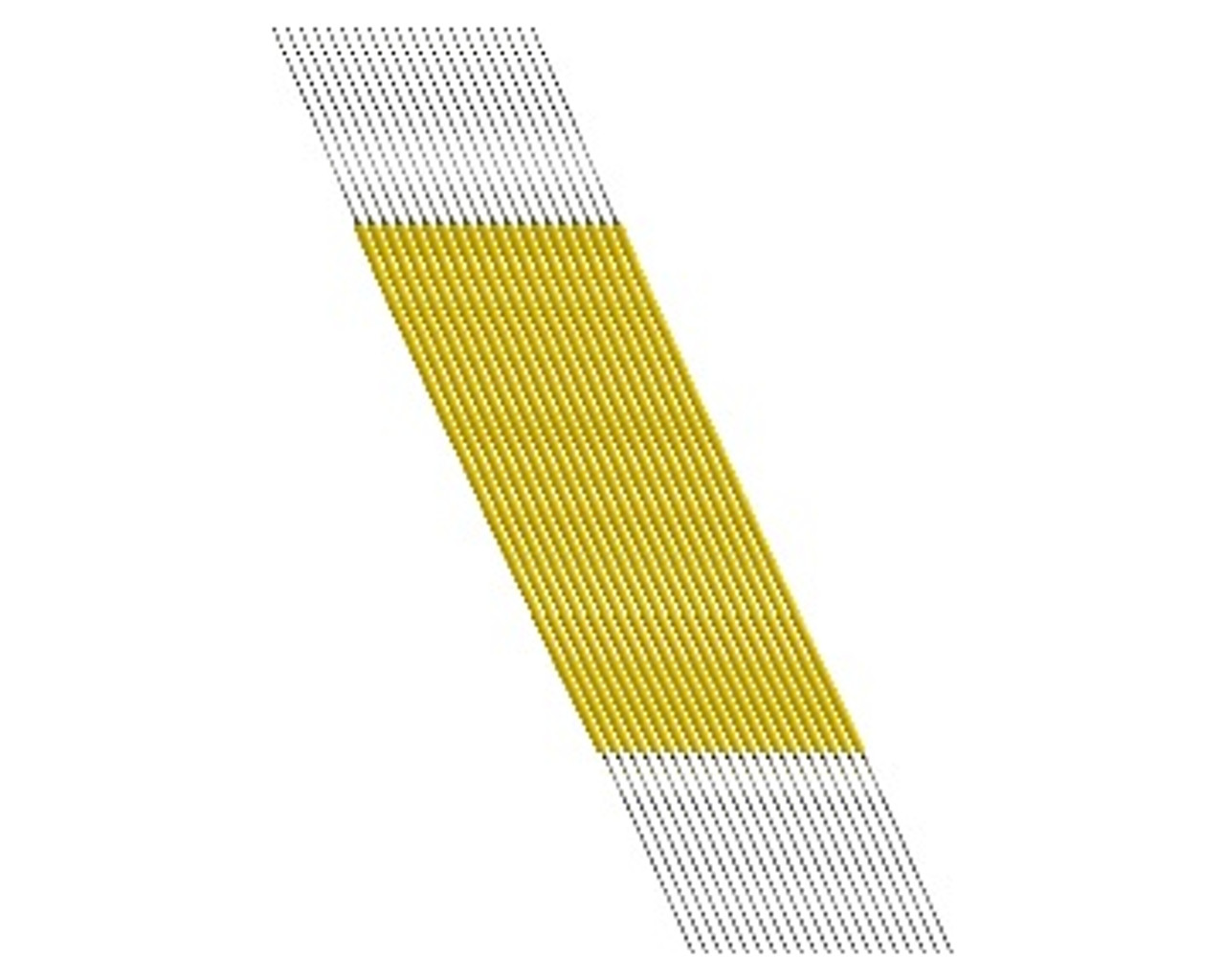

    JONARD 30-Y-50-020 Wire 30Awg Yellow Kynar 2" 50 Pcs/Pkg 811490011038 Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar® insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications. This pre-cut pre-stripped wire also features the following: OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance Meets or exceeds UL 1423 standards This wire is insulated in the middle and stripped on both ends Insulation length is 2" and the stripped length on each end is 1" Includes (50) pieces of pre-cut pre-stripped wire Specifications Insulation Type Kynar® Insulation Color Yellow Wire Gauge 30 AWG (0.25 mm) Insulation Length 2" (51 mm) Each End Strip Length 1" (25.4 mm) Overall Length 4" (102 mm) Conductor Material Silver Plated Copper Standards UL 1423 Weight 0.028 lb (12.70 g) UPC No. 811490011038
